Weston Luminance Meter: E703/2: In Line Panel Mount Configuration, Man. Surrey 1935

RETURN TO HOME PAGE                                               RETURN TO LUMINANCE METERS

One or two configurations of the widespread E703 can still be found that bear no physical resemblance to the standard model. Instead of the photronic cell being mounted on top, on the same surface as the meter face, it is mounted here behind the meter, on the same axial plane. In the example above, the unit is mounted on a hinged panel and was evidently a component on some form of industrial measurement and control assembly.

What, exactly, is not clear. The meter face is marked up with a linear scale running from 0 to 75. This reading would have been noted by an operator and used to make control adjustments. If anyone has any ideas about this particular meter, let me know.

_DSC2806 (1).jpeg

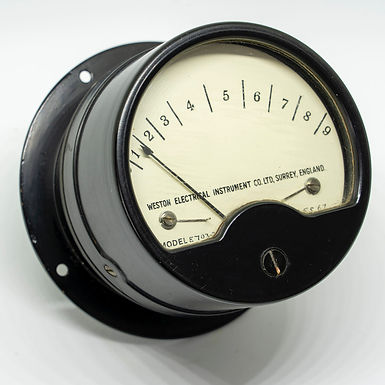

Another barrel configuration E703/2 owned by Paul Holton. The scale is linear, running from 0 - 9. The right picture shows the outward-facing Photronic cell behind the meter. This unit may have been used in a semi-automatic photographic printer. (Photos © Paul Holton 2023)

Another collector, Paul Holton, contacted me with news and pictures of a recent find, another E703 of barrel mount configuration (designation /2). I hadn't yest posted a picture of my example, but we were able to note the differences on the meter face. Paul's is marked up with a linear numerical  scale: 0 - 9. I am pretty sure this identifies it as a component in a semi-automatic printer.

What leads me to this conclusion is that I have a Weston Kodak Velox Exposure Indicator (E600) which is purely a micro-ammeter and would have been linked to a photronic cell in the printer. The numerical 10 value scale (see below) is similar to that of Paul's E703/2. His example would therefore have been incorporated as a one-piece unit in the printer - probably not made by Kodak (since they are not identified on the meter).

velox 2.jpg

Meter face detail of the E600 Exposure Indicator (micro-ammeter). The linear 10 point scale similar (but not identical) to that of Paul's E703/2 suggests that his was also used in a photographic printer.
